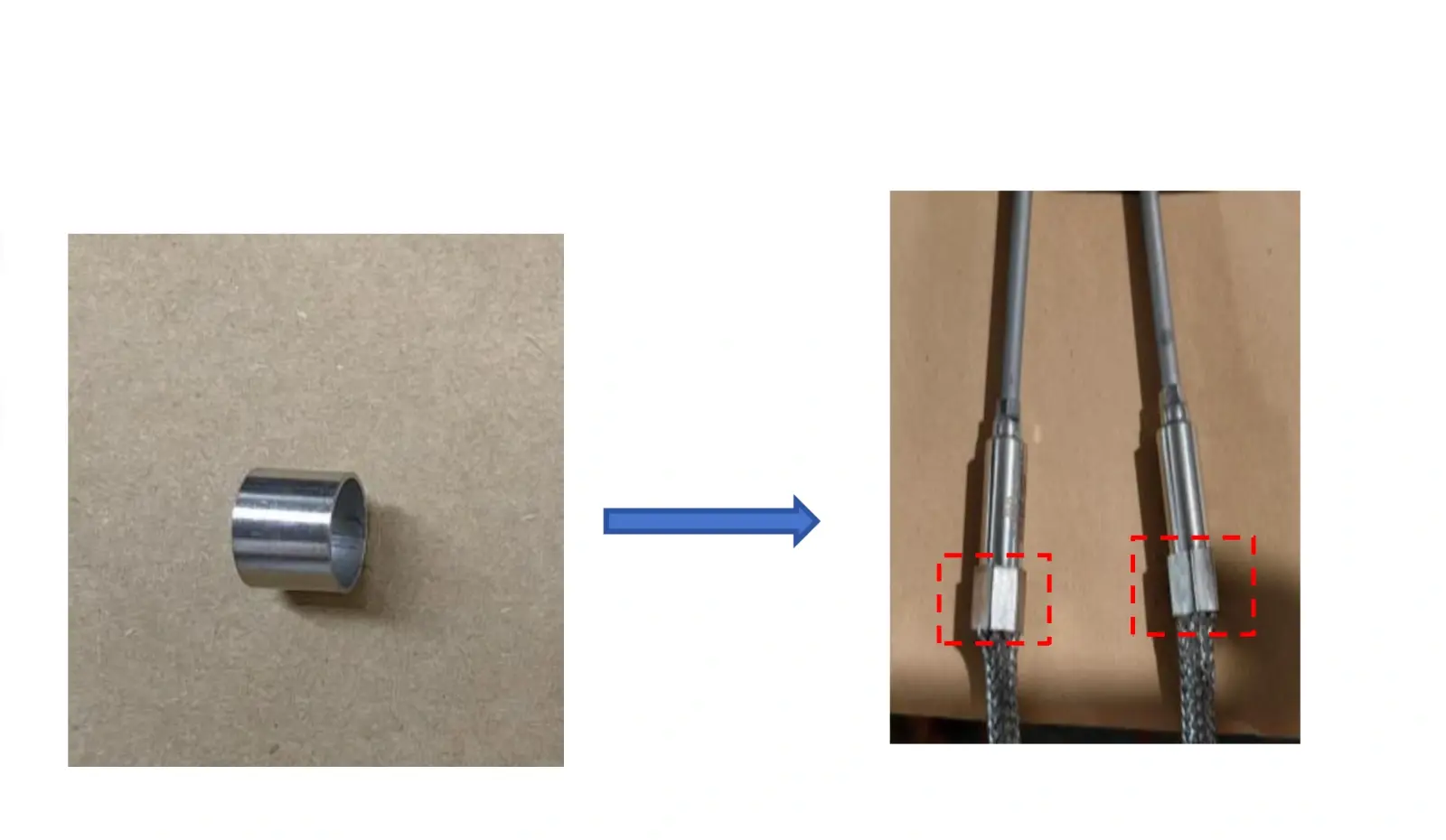

The hexagonal crimping machine is a kind of wire harness processing equipment that presses circular steel sleeves into hexagons through air pressure. It features simple operation, tight crimping, complete configuration, and precise and durable molds.
Product composition：
1. Motor: variable-speed motor
2. Operation methods: Touch screen, foot switch
Main parameters：
1. Voltage: 220V
Power: 50W
2. Effective travel: 40mm
3. Crimping range: 2.5-95 flat
4. Crimping speed: 1500 Pcs/H
5. Length*width*height: 400*300*850 mm
Weight: 50 Kg
Operating instructions：
1. Connect the power supply and air pipe, and set the crimping diameter on the Settings page.
2. Insert the circular steel sleeve into the area where the wire harness needs to be clamped, place it on the clamp head, and then step on the foot switch.
