Application Object：
Mainly for the slurry forming of paraffin systems such as alumina, zirconia, and porous ceramic parts, for example: square discharge tubes, fuse beads, temperature controller shells and covers, ceramic cigarette butts, ceramic atomization cores and other products' body forming!
Product feature:

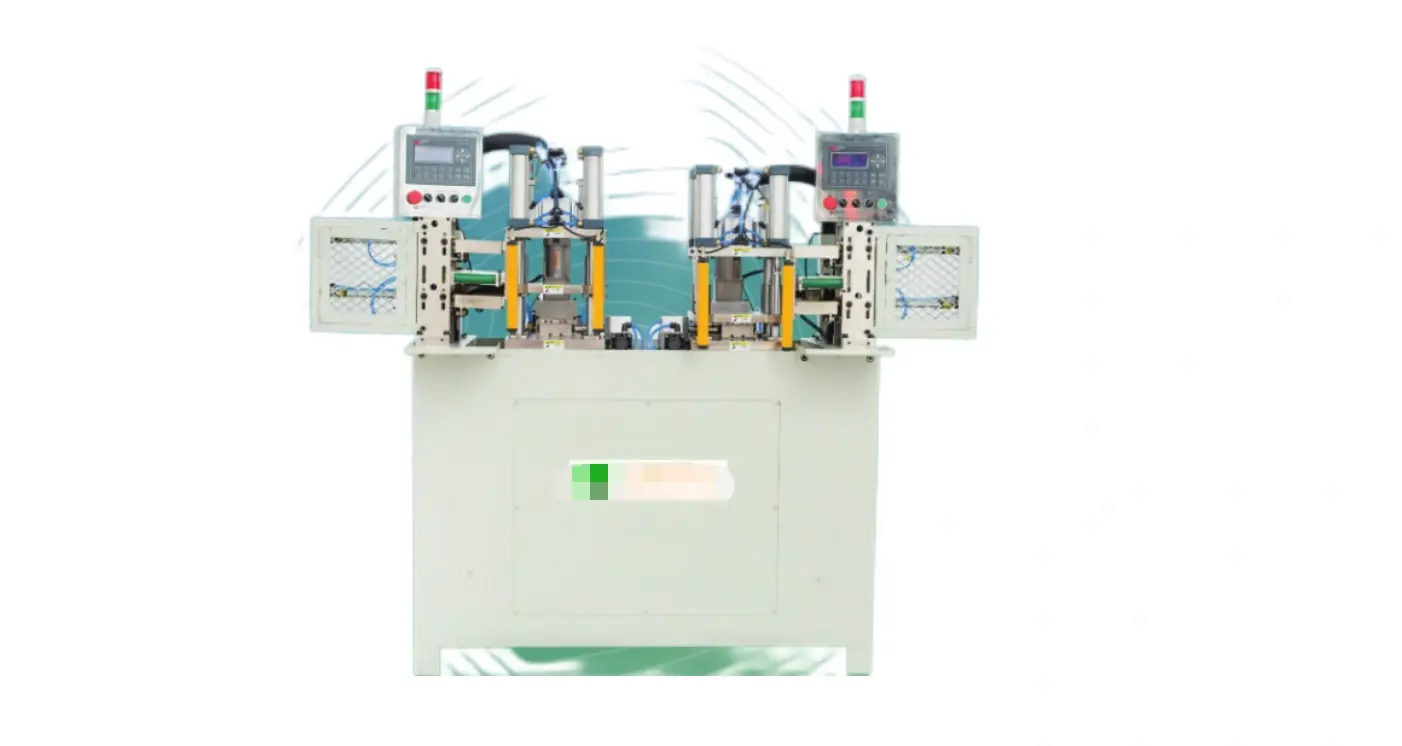

This equipment is an integration of two small single-station automatic hot-press grouting forming machines. This not only makes the frame more compact but also reduces the floor space, allowing one person to easily operate multiple presses. To a large extent, it saves floor space and labor costs.
|
Performance parameter |
||
|
production speed |
The fastest running time per mode |
8S |
|
Gas source parameters |
Rated demand pressure |
0.6～0.8MPa |
|
Power parameters |
Phase number |
2nd phase |
|
|
Rated voltage of power supply |
AC220V |
|
|
Frequency |
50HZ |
|
|
Rated power |
2.5KW |
|
|
Total power supply protection grade |
IP54 |
|
Weight and size |
Installation (unit) weight |
250KG |
|
|
External dimensions (length × width × height) |
1600mm×800mm×1500mm |
