Applicable Products
This equipment is suitable for the heating wire bonding process of hard products such as clothing, daily necessities and automotive supplies.

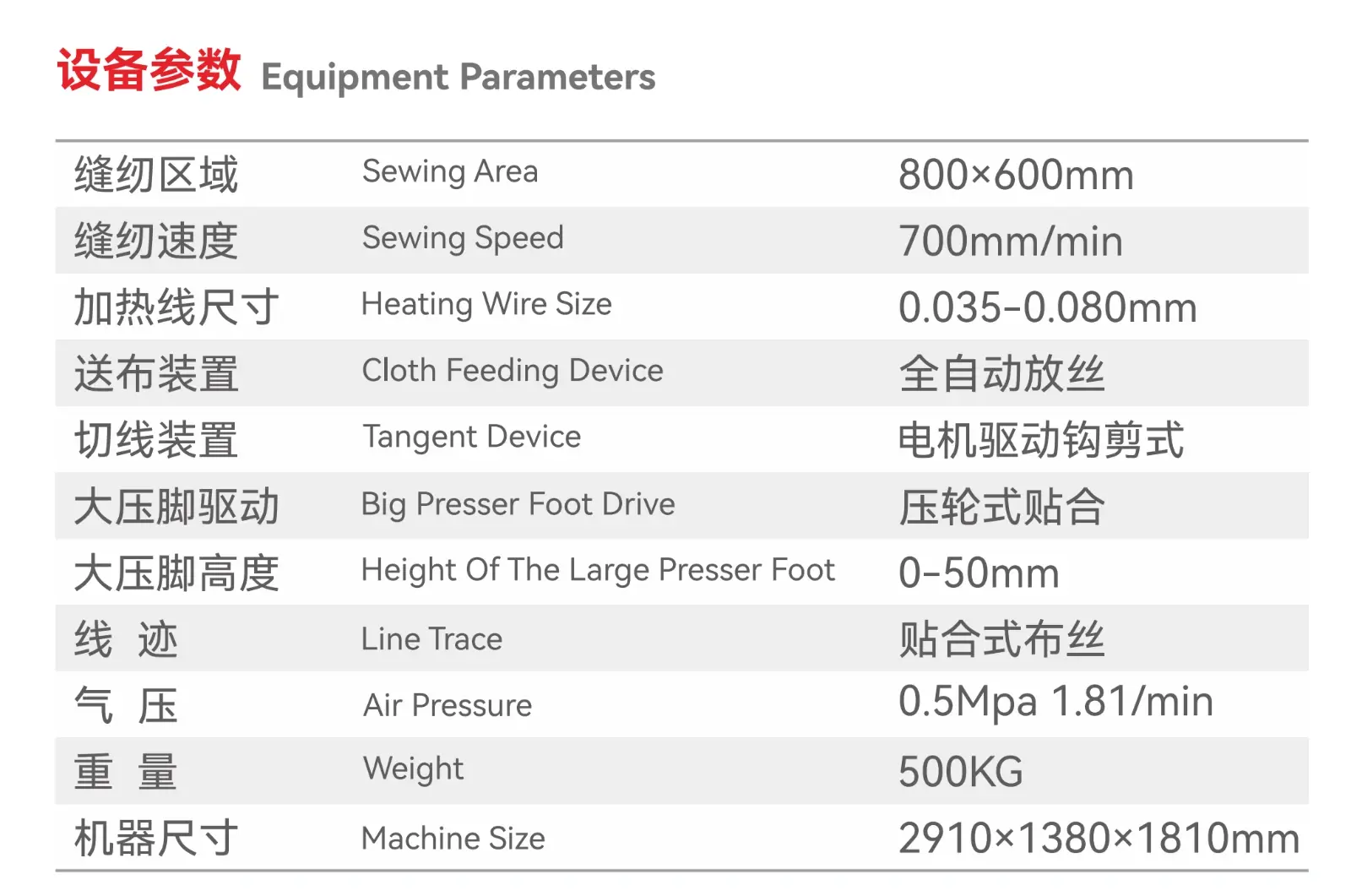

Equipment Parameters
|
Sewing area |
800×600mm |
|
Sewing speed |
700mm/min |
|
Heating wire size |
0.035-0.080mm |
|
Cloth delivery device |
Fully automatic wire feeding |
|
Tangential device |
Motor-driven hook-shear type |
|
Large foot drive |
Pressure wheel type lamination |
|
High compression foot height |
0-50mm |
|
Stitch |
Adhesive fabric filament |
|
Air pressure |
0.5Mpa 1.81/min |
|
Weight |
500KG |
|
Machine size |
2910×1380×1810mm |
