PRODUCT FEATURES
It is mainly used for the production of industrial stainless steel pipes. Due to the maturity of stainless steel welded pipe technology,
it has gradually replaced seamless pipes in many fields (such as chemical engineering, medicine, electronics, fluids, petroleum,
food, automobiles, papermaking, air conditioning and other industries, which have been widely applied). Automated production
process: Through continuous forming processes such as uncoiling, cleaning device, feeding guidance, forming, welding, inner
weld leveling, outer weld grinding, rough sizing, solution treatment, fine sizing, straightening, flaw detection, inkjet coding, sizing,
cutting (coiling), and receiving materials.
TECHNICAL PARAMETERS

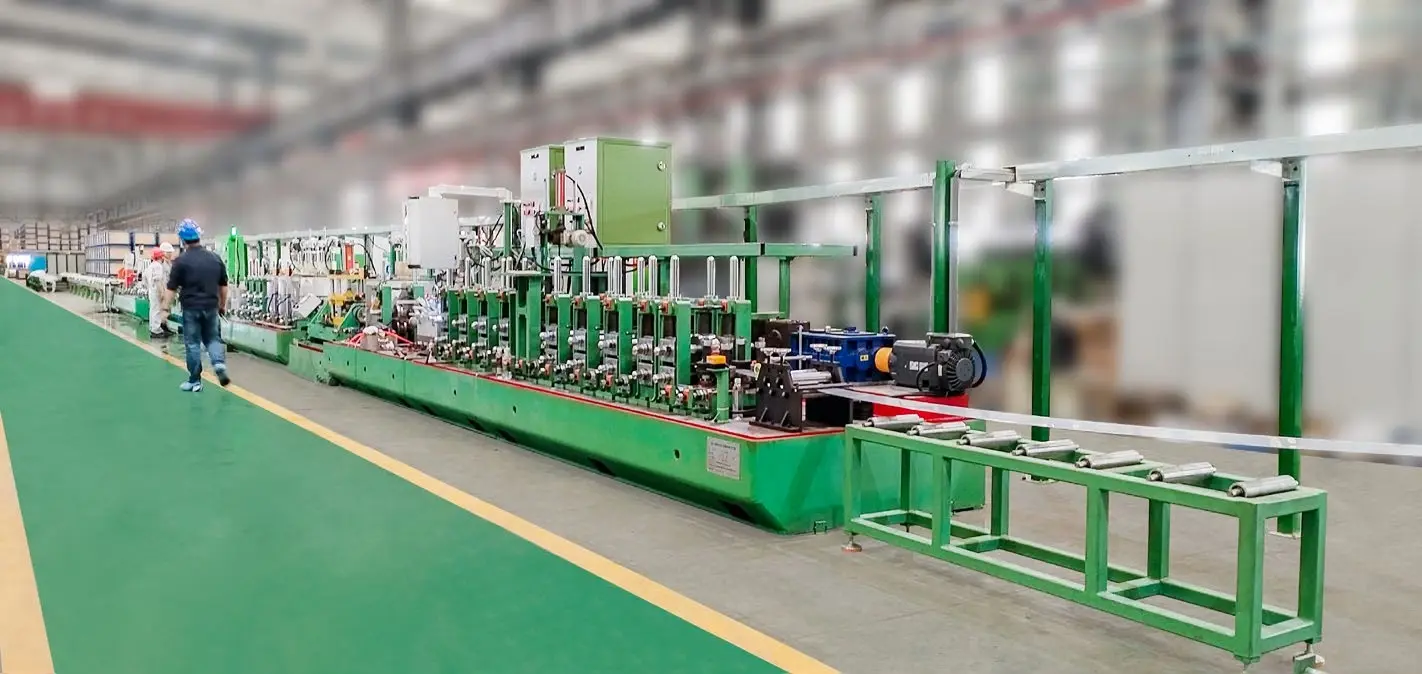

The main components of the intelligent precision welded pipe production line are: uncoiling machine - forming unit - laser welding section
- servo internal leveling machine - weld grinding section - initial sizing - online bright solution treatment - precision sizing (eddy current
flaw detection) - fixed-length cutting machine - finished product storage rack.
|
Model |
Horizontal axis diameter (mm) |
Vertical shaft diameter (mm) |
Diameter of welded pipe(mm) |
Thickness of welded pipe(mm) |
Motor power (kw) |
Speed (m/min) |
Assembly dimensions (m×m) |
|
JWY-HG-LS30 |
30 |
25 |
Φ6-φ16 |
0.25-1.5 |
2*5.5 |
||
|
JWY-HG-LS/X40 |
40 |
30 |
Φ9.5-φ31.6 |
0.25-1.5 |
2*5.5 |
N≤25 |
23×1.2 |
|
JWY-HG-LS40 |
40 |
30 |
Φ12.7-φ50.8 |
0.3-2.5 |
2*7.5 |
N≤20 |
25×1.3 |
|
JWY-HG-LS50 |
50 |
35 |
Φ25.4-φ76.2 |
0.4-3.5 |
2*11 |
N≤15 |
26×1.4 |
|
JWY-HG-LS60 |
60 |
40 |
Φ50.8-φ114 |
0.7-3.0 |
2*15 |
N≤10 |
29×1.5 |
|
JWY-HG-LS80 |
80 |
50 |
Φ76-φ168 |
1.0-4.0 |
2*18.5 |
N≤6 |
35×2.4 |
