APPLICATION SCOPE
It is mainly applied to the forming and welding of stainless steel pipes in the petroleum, chemical, Marine equipment and other
industries.
In 2024, the world's first Φ610*20mm stainless steel large-diameter continuous welded pipe equipment jointly produced with Taiwan
Weijia was successfully put into operation in the United States.

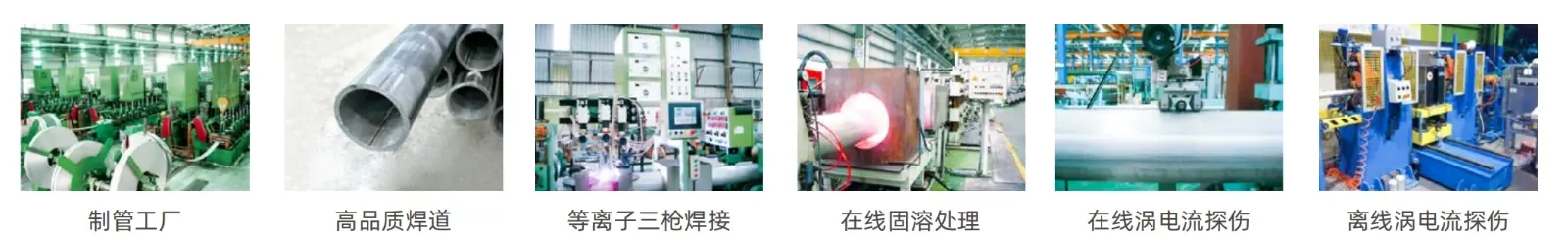

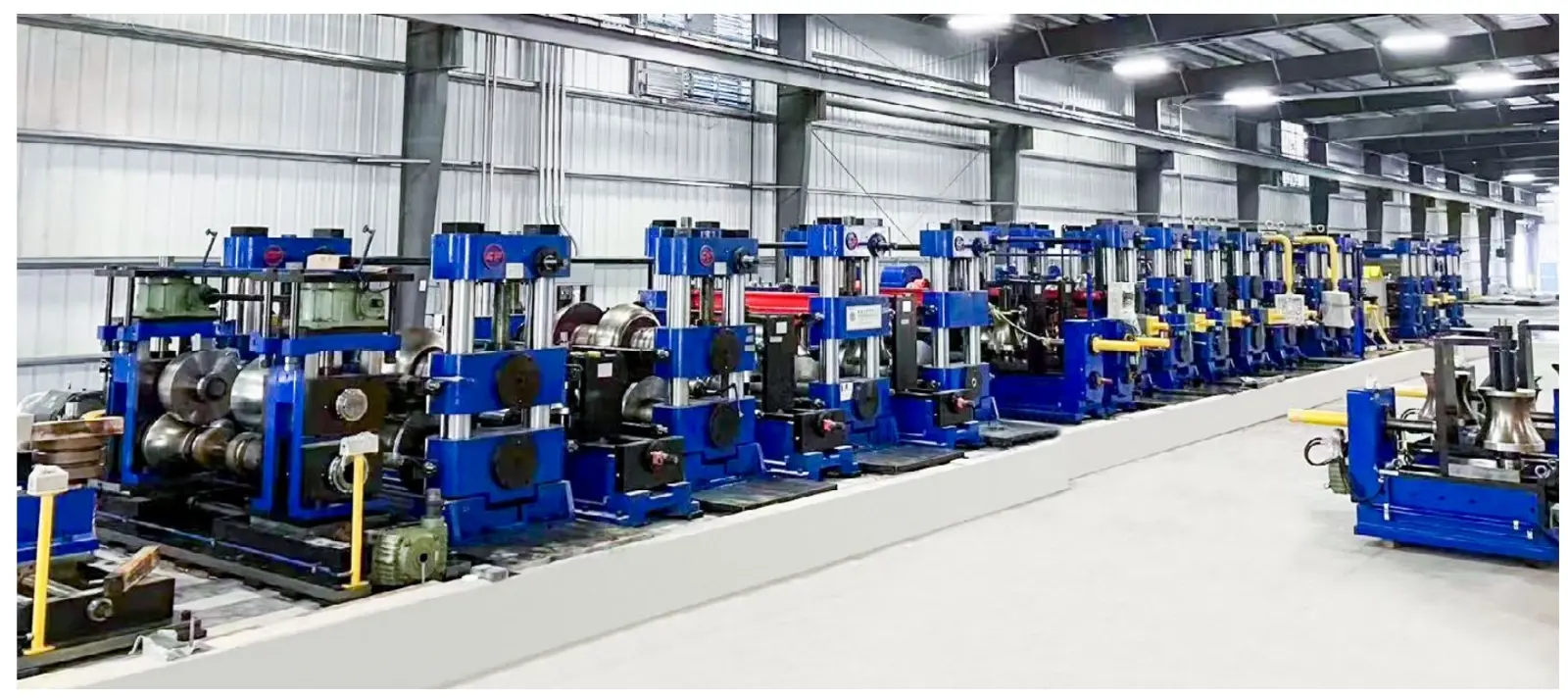

The automated production process of the stainless steel welded pipe production line: It involves continuous forming processes such
as uncoiling, flat head, shearing and butt welding, feeding guidance, forming, welding, inner weld treatment, outer weld grinding,
shaping and sizing, solution treatment, final sizing, straightening, flaw detection, inkjet coding, sizing, cutting, and blanking

Model

Horizontal axis diameter

(mm)

Vertical shaft diameter (mm)

Diameter of welded pipe(mm)

Thickness of welded pipe(mm)

Motor power (kw)

Speed

(m/min)

Assembly dimensions

(m×m)

JWY-HG-LS30

30

25

Φ6-φ16

0.25-1.5

2*5.5

N≤20

21.5×1.1

JWY-HG-LS/X40

40

30

Φ9.5-φ31.6

0.25-1.5

2*5.5

N≤25

23×1.2

JWY-HG-LS40

40

30

Φ12.7-φ50.8

0.3-2.5

2*7.5

N≤20

25×1.3

JWY-HG-LS50

50

35

Φ25.4-φ76.2

0.4-3.5

2*11

N≤15

26×1.4

JWY-HG-LS60

60

40

Φ50.8-φ114

0.7-3.0

2*15

N≤10

29×1.5

JWY-HG-LS80

80

50

Φ76-φ168

1.0-4.0

2*18.5

N≤6

35×2.4
